Raw Material: Truck tire, bus tire, radial tire, etc.
Capacity: 30-60 tires/hour

Mob & Whatsapp: +86 13816951140
Email: sales@bogushanghai.com

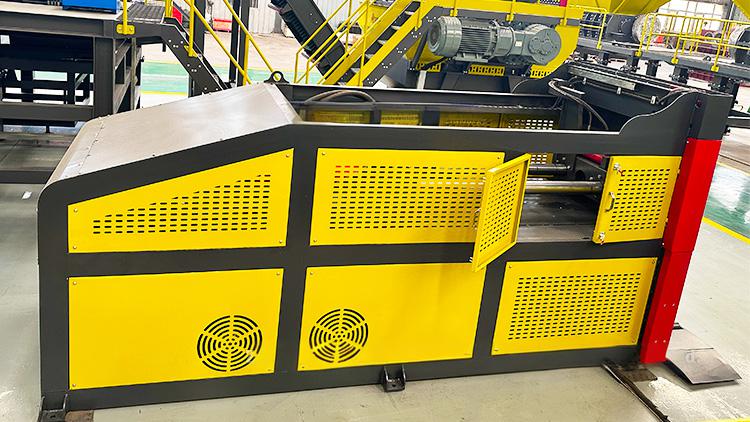

Tire debeader is specially designed to mechanically pull out the bead wires completely that are inside the sidewalls, high efficiency pull out in short time. Before the tires are sent to the next process tire shredder, they must pass through the tire debeading, which can make the finished product cleaner and ensure that the working blades of the shredder have a longer service life.

Our tire debeader is remote controlled, and easy to operate. The motor drives the hydraulic system and the oil cylinder of the tire steel wire debeader, and the hook is connected to the pull rod of the oil cylinder. Due to the movement of the oil pump and the oil cylinder, the pull hook is reciprocated. Place the tire on the feeding mouth, extend the pull hook out of the feeding mouth, hook the inner steel part of tire ring, and then start the button. Due to the strong pulling force of the oil cylinder, the steel wire will be pulled out as a whole, thereby achieving the purpose of separating the steel wire from the tire.

Suitable for vehicle tires, car tires, bus tires and truck tires debeading.

1. Hydraulic waste tire wire debeader machine is used to completely pull out the large strands of wire on the tire at one time, and smoothly separates the steel wire and rubber, facilitate the subsequent shredding or cutting process.
2. Remote control, high separation efficiency and reduces labor intensity of worker.
3. Tire wire debeader machine is composed of motor, hydraulic system, pull hook, cross plate, body, control handle, guide wheel, etc., which is mainly suitable for recycling of waste tires in waste tire recycling line.
